 Серия PFKC05
Модельный ряд
| Наименование |
Входное напряжение, B |
Выходное напряжение, B |
Выходной ток, мА |
Количество выходов |
| PFKC05-12S33 |
9 - 18 |
3,3 |
1000 |
1 |
| PFKC05-12S05 |
9 - 18 |
5 |
1000 |
1 |
| PFKC05-12S12 |
9 - 18 |
12 |
470 |
1 |
| PFKC05-12S15 |
9 - 18 |
15 |
400 |
1 |
| PFKC05-12D05 |
9 - 18 |
± 5 |
± 500 |
2 |
| PFKC05-12D12 |
9 - 18 |
± 12 |
± 230 |
2 |
| PFKC05-12D15 |
9 - 18 |
± 15 |
± 190 |
2 |
| PFKC05-24S33 |
18 - 36 |
3,3 |
1000 |
1 |
| PFKC05-24S05 |
18 - 36 |
5 |
1000 |
1 |
| PFKC05-24S12 |
18 - 36 |
12 |
470 |
1 |
| PFKC05-24S15 |
18 - 36 |
15 |
400 |
1 |
| PFKC05-24D05 |
18 - 36 |
± 5 |
± 500 |
2 |
| PFKC05-24D12 |
18 - 36 |
± 12 |
± 230 |
2 |
| PFKC05-24D15 |
18 - 36 |
± 15 |
± 190 |
2 |
| PFKC05-48S33 |
36 - 75 |
3,3 |
1000 |
1 |
| PFKC05-48S05 |
36 - 75 |
5 |
1000 |
1 |
| PFKC05-48S12 |
36 - 75 |
12 |
470 |
1 |
| PFKC05-48S15 |
36 - 75 |
15 |
400 |
1 |
| PFKC05-48D05 |
36 - 75 |
± 5 |
± 500 |
2 |
| PFKC05-48D12 |
36 - 75 |
± 12 |
± 230 |
2 |
| PFKC05-48D15 |
36 - 75 |
± 15 |
± 190 |
2 |
 |

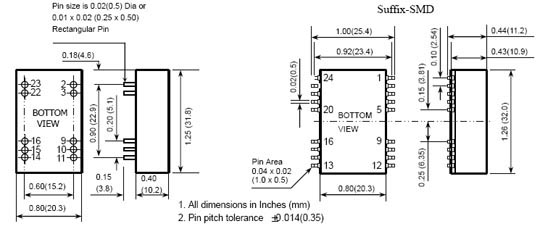

Расположение выводов
| DIP PIN CONNECTION |
| PIN |
SINGLE |
DUAL |
PIN |
SINGLE |
DUAL |
| 2 |
- INPUT |
- INPUT |
23 |
+ INPUT |
+ INPUT |
| 3 |
- INPUT |
- INPUT |
22 |
+ INPUT |
+ INPUT |
| 9 |
NC |
COMMON |
16 |
- OUTPUT |
COMMON |
| 10 |
NC |
NC |
15 |
NC |
NC |
| 11 |
NC |
- OUTPUT |
14 |
+ OUTPUT |
+ OUTPUT |
| SMD PIN CONNECTION |
| PIN |
SINGLE |
DUAL |
PIN |
SINGLE |
DUAL |
| 2 |
- INPUT |
- INPUT |
23 |
+ INPUT |
+ INPUT |
| 3 |
- INPUT |
- INPUT |
22 |
+ INPUT |
+ INPUT |
| 9 |
NC |
COMMON |
16 |
- OUTPUT |
COMMON |
| 10 |
NC |
NC |
15 |
NC |
NC |
| 11 |
NC |
- OUTPUT |
14 |
+ OUTPUT |
+ OUTPUT |
| Others |
NC |
NC |
Others |
NC |
NC |
|
Документация:
| |
|
 |
292 Kb Engl Описание DC-DC конвертора |
|
