 Серия MKC03
Модельный ряд
| Наименование |
Входное напряжение, B |
Выходное напряжение, B |
Выходной ток, мА |
| MKC03-12S33 |
9 - 18 |
3,3 |
500 |
| MKC03-12S05 |
9 - 18 |
5 |
500 |
| MKC03-12S12 |
9 - 18 |
12 |
250 |
| MKC03-12S15 |
9 - 18 |
15 |
200 |
| MKC03-I2D05 |
9 - 18 |
± 5 |
± 250 |
| MKC03-12D12 |
9 - 18 |
± 12 |
± 125 |
| MKC03-12D15 |
9 - 18 |
± 15 |
± 100 |
| MKC03-12DS05 |
9 - 18 |
V1:5 ; V2:5 |
V1:250 ; V2:250 |
| MKC03-12DS12 |
9 - 18 |
V1:12 ; V2:12 |
V1:125 ; V2:125 |
| MKC03-12DS15 |
9 - 18 |
V1:15 ; V2:15 |
V1:100 ; V2:100 |
| MKC03-24S33 |
18 - 36 |
3,3 |
500 |
| MKC03-24S05 |
18 - 36 |
5 |
500 |
| MKC03-24S12 |
18 - 36 |
12 |
250 |
| MKC03-24SI5 |
18 - 36 |
15 |
200 |
| MKC03-24D05 |
18 - 36 |
± 5 |
± 250 |
| MKC03-24D12 |
18 - 36 |
± 12 |
± 125 |
| MKC03-24D15 |
18 - 36 |
± 15 |
± 100 |
| MKC03-24DS05 |
18 - 36 |
V1:5 ; V2:5 |
V1:250 ; V2:250 |
| MKC03-24DS12 |
18 - 36 |
V1:12 ; V2:12 |
V1:125 ; V2:125 |
| MKC03-24DS15 |
18 - 36 |
V1:15 ; V2:15 |
V1:100 ; V2:100 |
| MKC03-48S33 |
36 -75 |
3,3 |
500 |
| MKC03-48S05 |
36 -75 |
5 |
500 |
| MKC03-48S12 |
36 -75 |
12 |
250 |
| MKC03-48SI5 |
36 -75 |
15 |
200 |
| MKC03-48D05 |
36 -75 |
± 5 |
± 250 |
| MKC03-48D12 |
36 -75 |
± 12 |
± 125 |
| MKC03-48D15 |
36 -75 |
± 15 |
± 100 |
| MKC03-48DS05 |
36 -75 |
V1:5 ; V2:5 |
V1:250 ; V2:250 |
| MKC03-48DS12 |
36 -75 |
V1:12 ; V2:12 |
V1:125 ; V2:125 |
| MKC03-48DS15 |
36 -75 |
V1:15 ; V2:15 |
V1:100 ; V2:100 |
 |

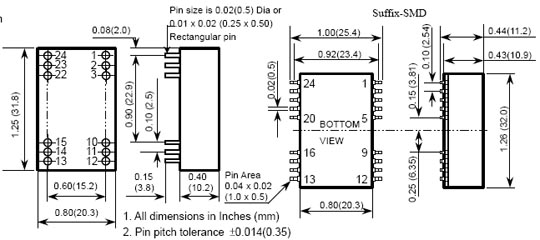

Расположение выводов
| DIP PIN CONNECTION |
| PIN |
SINGLE |
DUAL |
DS |
PIN |
SINGLE |
DUAL |
DS |
| 1 |
+ INPUT |
+ INPUT |
+ INPUT |
24 |
+ INPUT |
+ INPUT |
+ INPUT |
| 2 |
NC |
- OUTPUT |
-V1out |
23 |
NC |
- OUTPUT |
-V1out |
| 3 |
NC |
COMMON |
+ V1 out |
22 |
NC |
COMMON |
+ V1 out |
| 10 |
-OUTPUT |
COMMON |
-V2out |
15 |
- OUTPUT |
COMMON |
-V2out |
| II |
+OUTPUT |
+OUTPUT |
+ V2 out |
14 |
+OUTPUT |
+OUTPUT |
+ V2 out |
| 12 |
- INPUT |
- INPUT |
- INPUT |
13 |
- INPUT |
- INPUT |
- INPUT |
| SMD PIN CONNECTION |
| PIN |
SINGLE |
DUAL |
DS |
PIN |
SINGLE |
DUAL |
DS |
| 1 |
+ INPUT |
+ INPUT |
+ INPUT |
24 |
+ INPUT |
+ INPUT |
+ INPUT |
| 2 |
NC |
- OUTPUT |
- V1 out |
23 |
NC |
- OUTPUT |
-VI out |
| 3 |
NC |
COMMON |
+ V1 out |
22 |
NC |
COMMON |
+ V1 out |
| 10 |
-OUTPUT |
COMMON |
-V2out |
15 |
-OUTPUT |
COMMON |
-V2out |
| 11 |
+OUTPUT |
- • -OUTPUT |
+ V2 out |
14 |
+OUTPUT |
+OUTPUT |
+ V2 out |
| 12 |
- INPUT |
- INPUT |
- INPUT |
13 |
- INPUT |
- INPUT |
- INPUT |
| Others |
NC |
NC |
NC |
Others |
NC |
NC |
NC |
|
Документация:
| |
|
 |
345 Kb Engl Описание DC-DC конвертора |
|
